H610M S2H V2
, , ,

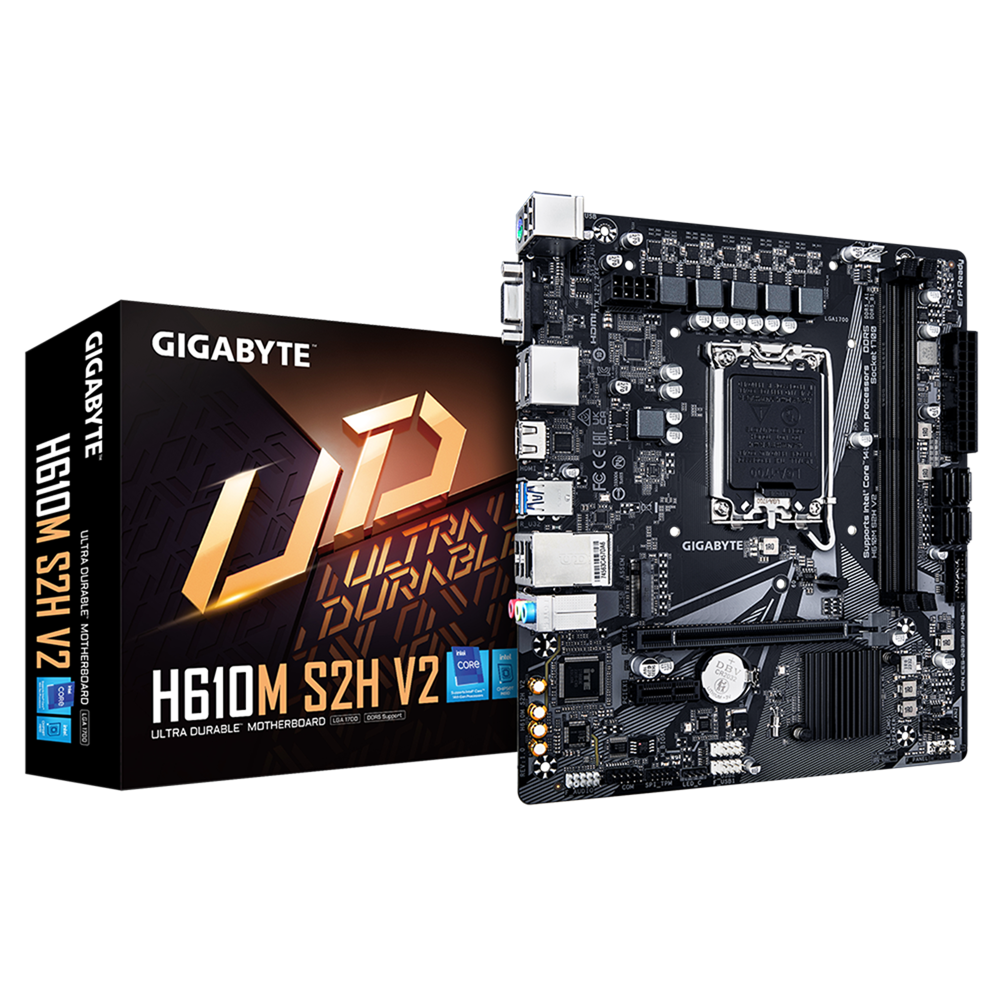

Gigabyte H610M S2H V2 Micro ATX Motherboard

SKU: PCK17082 Categories: , , ,
Gigabyte
Availability:

In stock

Gigabyte H610M

Intel LGA1700 socket: Support for 14th, 13th & 12th Gen
2 x DDR5 DIMM sockets supporting up to 128 GB RAM
1 x M.2 connector – 4 x SATA 6Gb/s connectors

KD 28.000

In stock

Buy Now
Gigabyte H610M
Intel® H610 Motherboard with 4+1+1 Hybrid Phases Digital VRM Design, PCIe 4.0* Design, Gen3 x4 M.2, 2*DisplayPort / HDMI / D-Sub Ports for Multiple Display , Anti-Sulfur Resistor, Smart Fan 6
  • Supports Intel® Core™ 14th/ 13th /12th processors
  • Dual Channel Non-ECC Unbuffered DDR5, 2 DIMMs
  • 4+1+1 Hybrid Digital VRM Design
  • GbE LAN with Bandwidth Management
  • NVMe PCIe 3.0 x4 M.2
  • 2*DisplayPort / HDMI / D-Sub Ports for Multiple Display
  • High Quality Audio Capacitors and Audio Noise Guard
  • Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • GIGABYTE APP Center, Simple and Easy Use
  • Anti-Sulfur Resistors Design
* Actual support may vary by CPU.
Cleaner and more efficient power delivery to the CPU with better thermal performance ensure stability under high CPU frequencies and heavy loading.
  • 4+1+1 Phases Low RDS(on) MOSFETs
  • Solid capacitors to improve transient response and minimize oscillation.
  • 8-pin Solid Pin CPU Power Connector.
XTREME MEMORY
GIGABYTE H610 Motherboards feature the latest DDR5 architecture and XMP 3.0 capability. The new DDR5 memory technology brings 50% more bandwidth to the platform and increases the system performance drastically by implementing Unlocked Native DDR5 Voltage, Xtreme Memory Routing. In addition to the hardware upgrades, the user friendly UI provides full functionality to overclock higher with exclusive DDR5 tuning capability.
GbE LAN with Bandwidth Management
GbE LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.
Solid Pin Power Connectors
H610 motherboards feature solid plated ATX 12V 8pin power connectors to offer a stable power supply during CPU overloading.
Solid Pin Power connector advantages
  1. Larger contact area for electricity
  2. More metal quantity to sustain higher power and generated heat
  3. Ultra durable and longer lifespan
BIOS
The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system.
* Photos are for reference only. Product features may vary by model.
SKU: PCK17082 Categories: , , ,
Brand Name

Gigabyte
Socket

LGA 1700
Ram Type

DDR5
  • CPU
    LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
    L3 cache varies with CPU
    * Please refer to “CPU Support List” for more information.
  • Chipset
    Intel® H610 Express Chipset
  • Memory
    14th and 13th Generation Intel® Core™ i9/i7 Pocessors:
    – Support for DDR5 5600/5200/4800/4400 MT/s memory modules
    13th Generation Intel® Core™ i5/i3 and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors:
    – Support for DDR5 4800/4400 MT/s memory modules
    2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
    Dual channel memory architecture
    Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    Support for Extreme Memory Profile (XMP) memory modules
    (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” on GIGABYTE’s website for more information.)
  • Onboard Graphics
    Integrated Graphics Processor-Intel® HD Graphics support:
    – 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz
    – 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hzjk
    * Support for HDMI 2.1 version and HDCP 2.3.
    ** Support native HDMI 2.1 TMDS compatible ports.

    – 2 x DisplayPorts, supporting a maximum resolution of 4096×2304@60 Hzj
    * Support for DisplayPort 1.2 version and HDCP 2.3

    (Graphics specifications may vary depending on CPU support.)
    Support for up to triple-display at the same timej

  • Audio
    Realtek® Audio CODEC
    High Definition Audio
    2/4/5.1/7.1-channel
    * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

  • LAN
    Realtek® GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)
  • Expansion Slots
    CPU:
    – 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
    Chipset:
    – 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
  • Storage Interface
    Chipset:
    – 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD
    support)
    – 4 x SATA 6Gb/s connectors
  • USB
    Chipset:
    – 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
    – 4 x USB 2.0/1.1 ports on the back panel
    Chipset+USB 2.0 Hub:
    – 4 x USB 2.0/1.1 ports available through the internal USB headers
  • Internal I/O Connectors
    1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connector
    1 x CPU fan header
    2 x system fan headers
    1 x M.2 Socket 3 connector
    4 x SATA 6Gb/s connectors
    1 x RGB LED strip header
    1 x front panel header
    1 x front panel audio header
    1 x speaker header
    1 x USB 3.2 Gen 1 header
    2 x USB 2.0/1.1 headers
    1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only)
    1 x serial port header
    1 x Clear CMOS jumper
    1 x chassis intrusion header
  • Back Panel Connectors
    1 x PS/2 keyboard/mouse port
    1 x D-Sub port
    2 x DisplayPort
    1 x HDMI port
    2 x USB 3.2 Gen 1 ports
    4 x USB 2.0/1.1 ports
    1 x RJ-45 port
    3 x audio jacks
  • I/O Controller
    iTE® I/O Controller Chip
  • H/W Monitoring
    Voltage detection
    Temperature detection
    Fan speed detection
    Water cooling flow rate detection
    Fan fail warning
    Fan speed control
    * Whether the fan speed control function is supported will depend on the fan you install.

  • BIOS
    1 x 128 Mbit flash
    Use of licensed AMI UEFI BIOS
    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Unique Features
    Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

    – @BIOS
    – EasyTune
    – Smart Backup
    – System Information Viewer
    Support for Q-Flash

  • Bundled Software
    Norton® Internet Security (OEM version)
    LAN bandwidth management software
  • Operating System
    Support for Windows 11 64-bit
    Support for Windows 10 64-bit
  • Form Factor
    Micro ATX Form Factor; 22.3cm x 19.6cm
