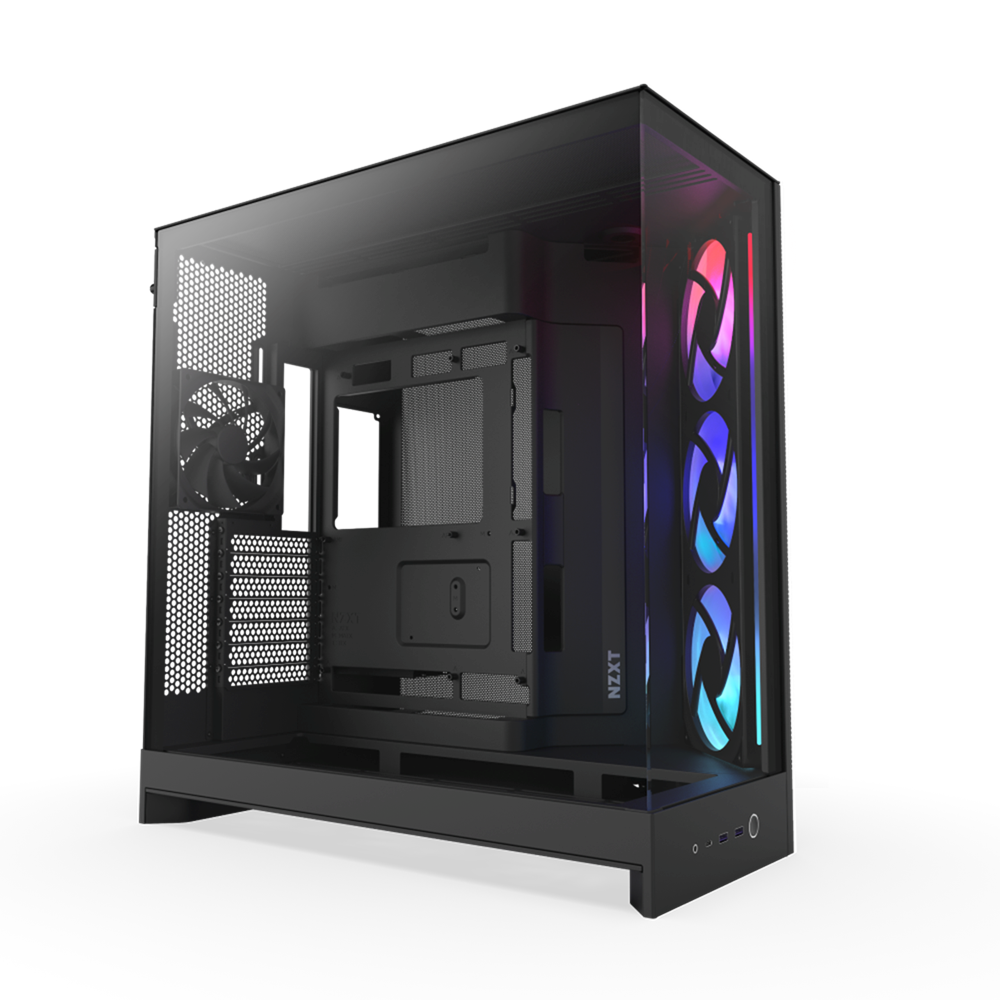

NZXT H9 Flow RGB Large Dual-Chamber Mid-Tower ATX Airflow Case with RGB, 2x Fans (Black)

SKU: PCK17578 Categories: , ,
NZXT
Availability:

In stock


NZXT

Mesh Panels
Optimized Airflow
Spacious Dual-Chamber
Large Radiator Support
Easy Cable Management

KD 62.000 KD 67.000

In stock

Buy Now

NZXT

Overview

The H9 Flow is a spacious mid-tower ATX case built for high-performance builds, balancing airflow and aesthetics. Its dual-chamber design improves cooling and cable management, while perforated panels, angled fans, and ample fan and radiator support deliver optimal thermal performance.

  • Dual-Chamber Design: Separates main components from the PSU and drives for improved thermal performance and cable management.
  • Optimized Airflow: Perforated steel panels and angled front-right fans ensure efficient cooling for high-performance builds.
  • Pre-Installed Fans: Includes one F420 RGB Core single-frame fan unit in the front-right and one F120Q (CV) fan in the rear. CV = Case Version (3-pin DC)
  • Ten-Fan Capacity: Supports up to nine 140mm fans across the top, front-right, and bottom, plus one 120mm fan in the rear.

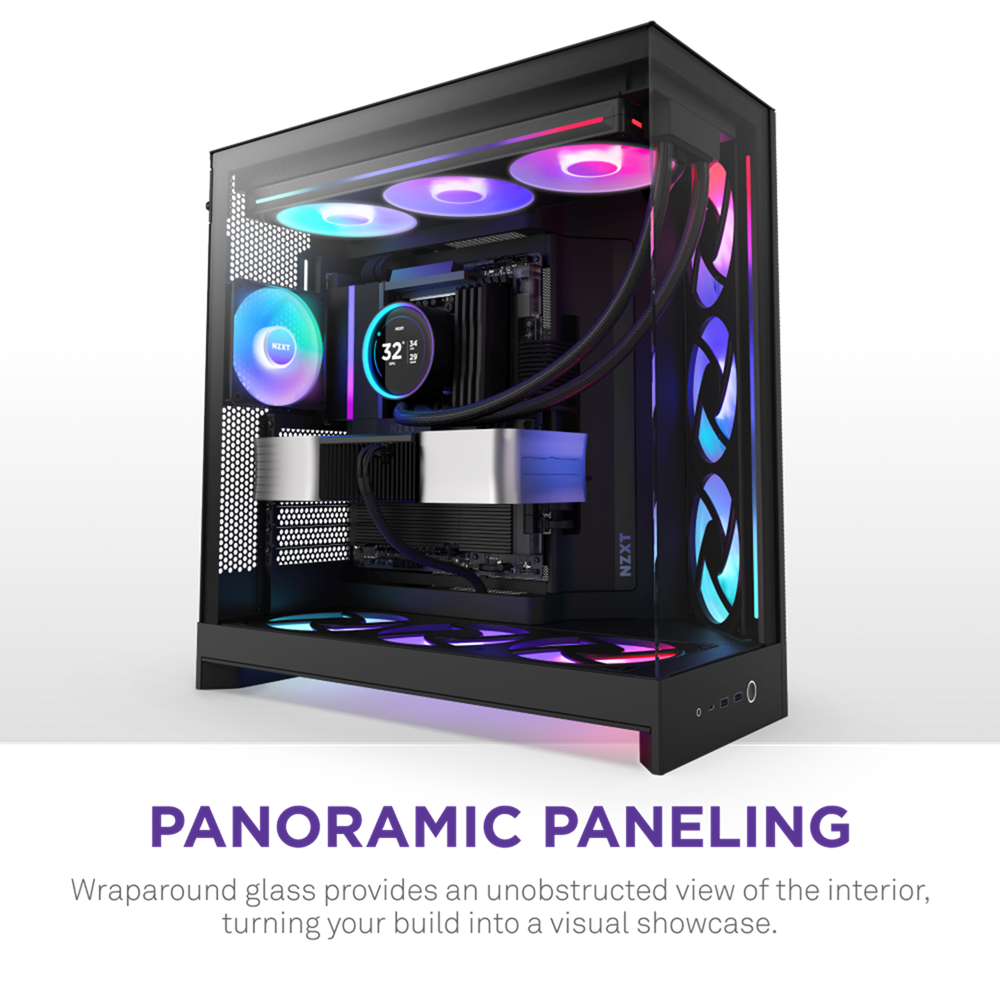

  • Panoramic View: Showcase every detail of your build with seamless, wraparound tempered glass paneling.
  • Large Radiators & GPUs: Fits up to a 420mm radiator on the top and front-right, with plenty of clearance for high-end graphics cards.
  • Easy Cable Management: Extra-wide channels, built-in Velcro straps, and tie-down points make cable routing effortless.
  • Back-Connect Ready: Compatible with rear-connecting motherboards like ASUS BTF and MSI Project Zero for a cable-free look.
A PC case with RGB lighting, illustrating airflow: blue arrows show cool air entering from the bottom and right, while purple arrows show warm air exiting from the top and left. Temperature display on the CPU cooler reads 32°C.

Optimized Airflow

Angled front-right fans and an airflow-optimized layout keep temps low and performance steady.

Close-up view of a black computer case with a mesh front panel showing two cooling fans inside. The case has a sleek, modern design with sharp edges and a partially visible glass side panel.

Mesh Panels

Ultra-fine, high-airflow mesh panels maximize airflow while filtering dust.

Two computer towers: one black with a transparent side panel showing fans, and one white with a clear panel revealing RGB-lit components, liquid cooling, and a digital display inside.

Spacious Dual-Chamber

Separates heat-generating components for improved airflow and a cleaner build.

Side view of a PC case with labeled fan/radiator mounting locations: front (3x120mm/3x140mm), top (3x120mm/3x140mm), bottom (3x120mm/3x140mm), and rear (1x120mm/1x140mm).

10-Fan Cooling

Fits up to nine 140 mm fans and one 120 mm rear fan.

A white gaming PC case with RGB fans and a digital display, showing interior liquid cooling tubes. Purple labels indicate maximum radiator sizes: 420 mm top/right, 120 mm rear, and 360 mm bottom.

Large Radiator Support

Holds up to 420 mm radiators on the top and front-right panels for versatile cooling.

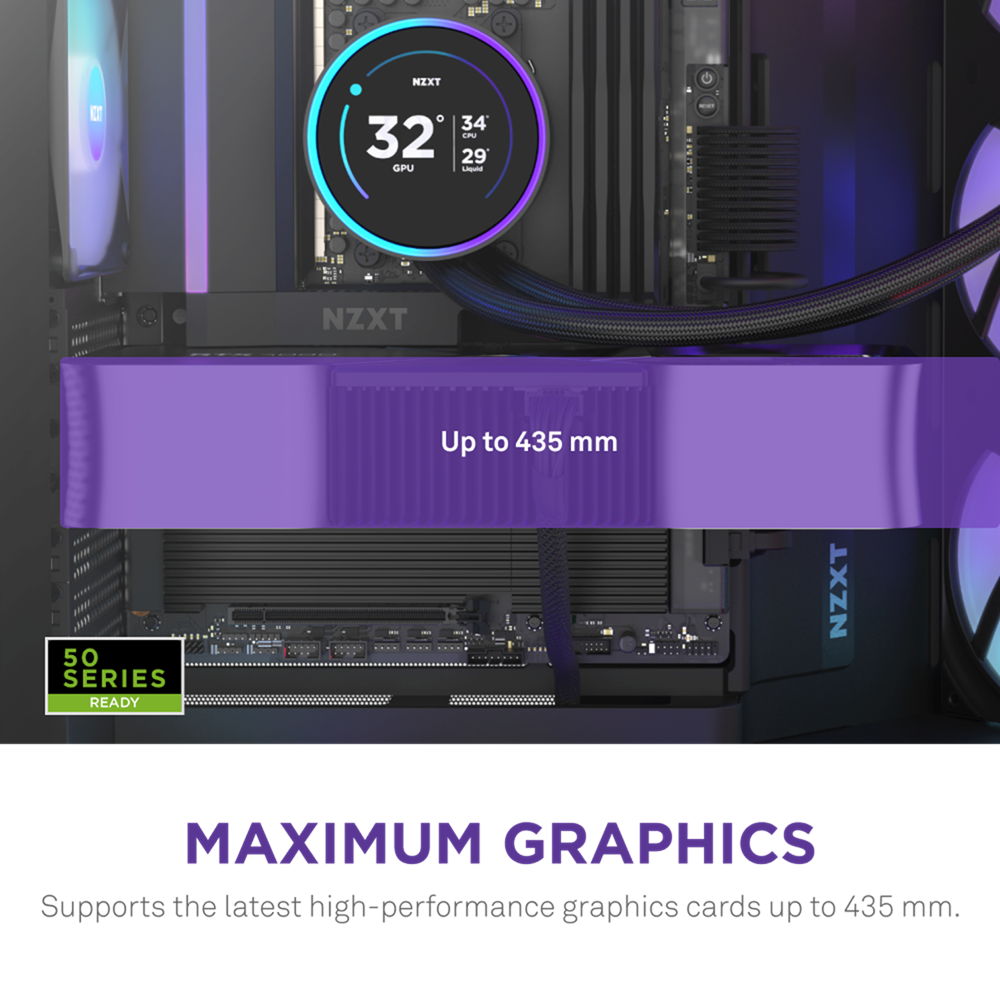

Close-up of a computers interior showing an NZXT-branded cooler with a digital display reading 32°C GPU. Purple overlay text reads Up to 435mm. Bottom right has a green label: 50 Series Ready.

Maximum Graphics

Handles GPUs up to 435 mm, giving plenty of space for top-tier graphics cards.

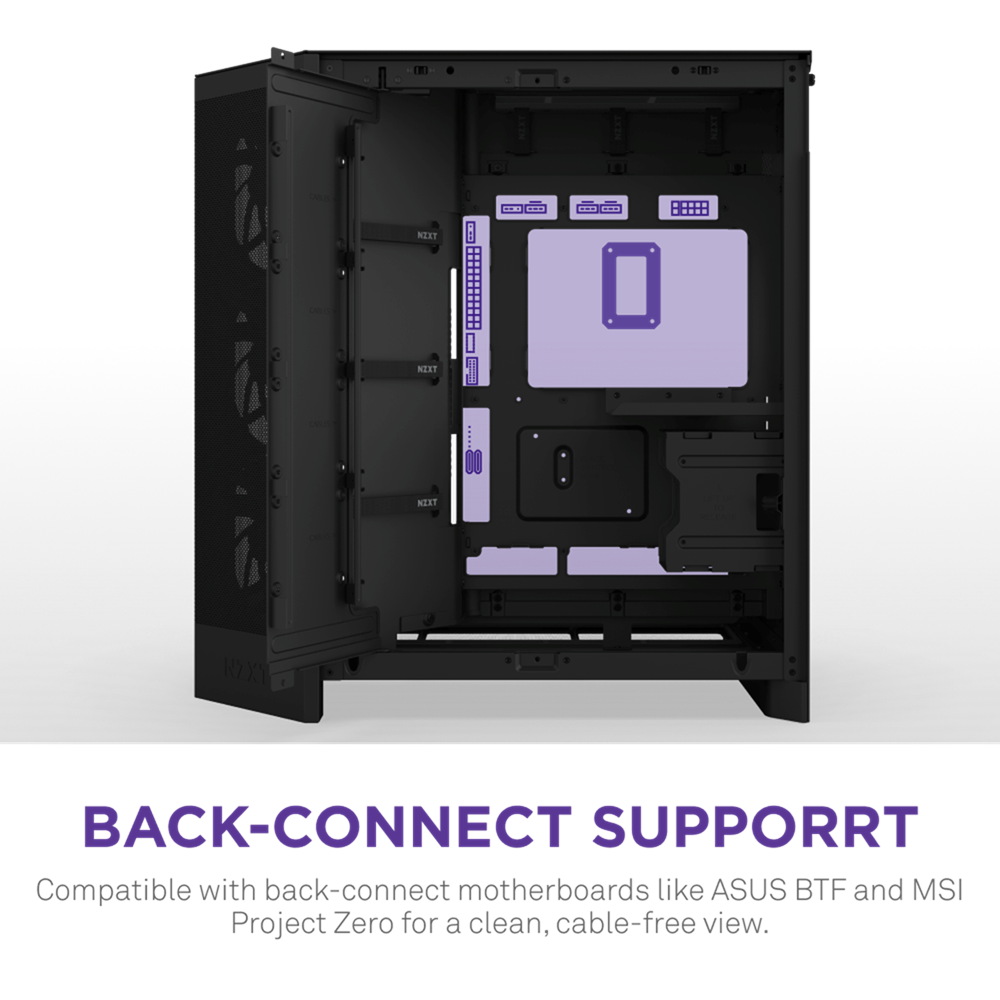

Open white computer case showing interior with highlighted motherboard tray and cable management sections in purple gradient. Multiple cable routing channels and mounting points are visible.

Back-Connect Ready

Compatible with ASUS BTF and MSI Project Zero motherboards for a cable-free look.

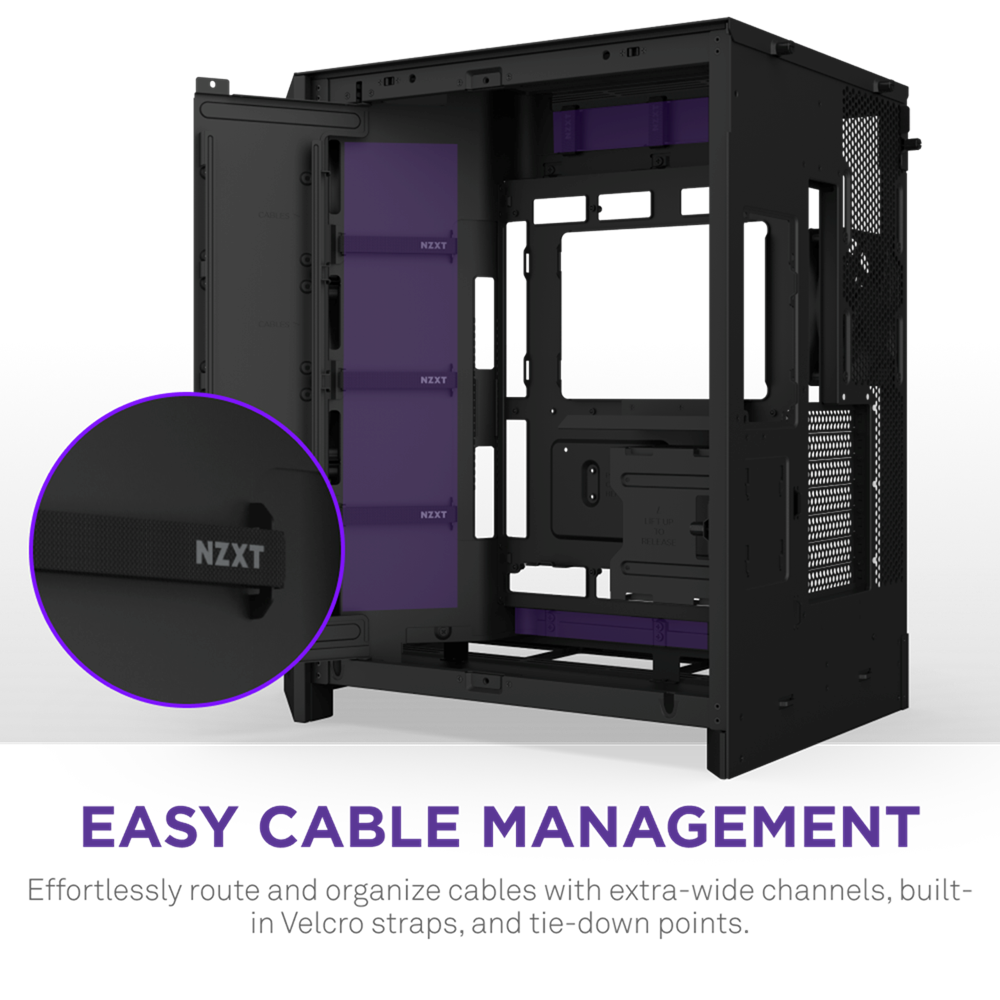

A black NZXT computer case with its side panel open, revealing an empty interior and highlighted mounting areas. A circular inset zooms in on an internal NZXT-branded strap.

Easy Cable Management

Extra-wide channels, Velcro straps, and tie-down points make cable routing simple.

SKU: PCK17578 Categories: , ,
Brand Name

NZXT

Case Type

2-Fans, ATX, Mid Tower

Color

Black

Tech Specs

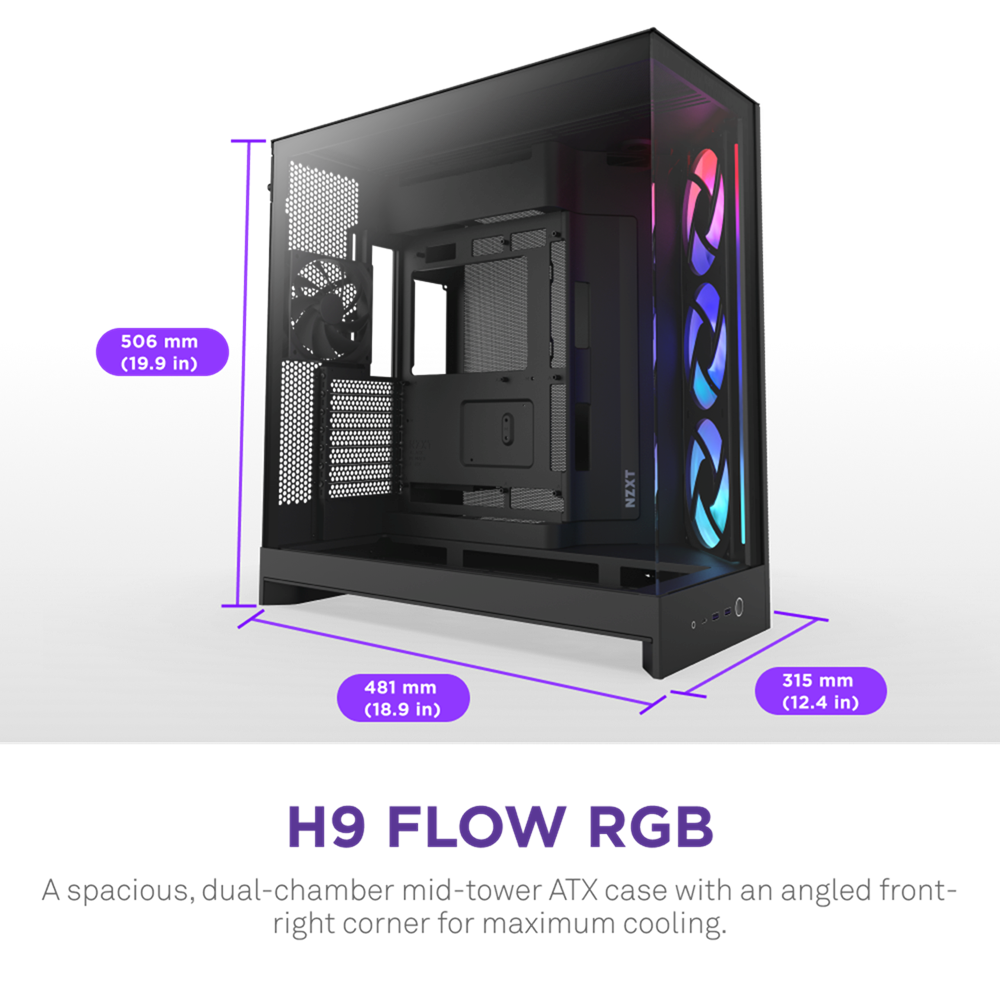

Dimensions

Height

506 mm (19.9 in)

Width

315 mm (12.4 in)

Depth

481 mm (18.9 in)

Volume

76.7 L

Weight

12.6 kg (27.78 lb)

General

Enclosure Type

Mid-tower

Motherboard Compatibility

E-ATX (Up to 277 mm), ATX, Micro-ATX, Mini-ITX

Rear-Connecting Motherboard Support (BTF, Project Zero)

Yes (ATX)

Materials

SGCC steel, clear tempered glass (white), tinted tempered glass (black)

Clearance

CPU Cooler Height

165 mm

GPU Length

Up to 459 mm (with <56 mm thickness fans installed at the front-right) Up to 410 mm (with 56 mm thick 420 mm AIO and fans installed at the front-right)

PSU Length

200 mm

Top Radiator & Fan Thickness

Up to 80 mm (360 mm) Up to 62 mm (420 mm)

Front I/O Ports

USB 3.2 Type-A

2

USB 3.2 Gen2x2 Type-C

1

Headset Jack

1

Expansion Slots

Standard

7

Vertical

0

Drive Bays

2.5″

4+2

3.5″

2

Fan Support

Front-Right

3 x 120 mm / 3 x 140 mm (1 x F420 RGB Core included)

Top

3 x 120 mm / 3 x 140 mm

Bottom

3 x 120 mm / 3 x 140 mm

Rear

1 x 120 mm (1 x F120Q (CV) included)

Radiator Support

Fan Specs – F420 RGB Core

Model

F420 RGB Core

Speed

2,000 ± 200 RPM

Airflow

98.61 CFM

Static Pressure

3.2 mmH2O

Noise

34.5 dBA

Fan Connector

8-pin w/ splitter

Fan Specs – F120Q (CV)

Model

F120Q (CV)

Speed

1,350 ± 150 RPM

Airflow

60.2 CFM

Static Pressure

1.05 mmH2O

Noise

24.1 dBA

Fan Connector

3-pin
