Sapphire
- GPU: Boost Clock: Up to 2700 MHz
- GPU: Game Clock: Up to 2210 MHz
- Memory: 16GB/256 bit DDR6. 20 Gbps Effective
- Stream Processors: 3584
- AMD RDNA™ 4 Architecture
- Ray Accelerator: 56
Honeywell PTM7950 TIM
The Honeywell PTM7950 Thermal Interface Material (TIM) offers a premium solution for high-performance electronics, particularly in the demanding field of graphics processing units (GPUs). The PTM7950 delivers superior thermal conductivity, enhancing the reliability and longevity of graphics cards by its outstanding material characteristics.
Free Flow
The Free Flow cooling design is tailored for axial fan systems, featuring an advanced heatsink fin module that optimizes airflow paths. By reducing turbulence and channeling air efficiently, it maximizes heat dissipation, ensuring consistent performance even under heavy thermal loads.
AeroCurve Fan Blade
The latest fan blade design builds upon its predecessor with advancements that reduce air friction, increasing the usable fan RPM range while maintaining low noise levels. This refined design ensures improved airflow, optimized static pressure, and enhanced cooling efficiency for demanding applications.
Tough Metal Backplate
The all-aluminum backplate provides additional rigidity that guarantees nothing bends and dust stays out. It also helps cool your card by increasing heat dissipation.
| Brand Name |
Sapphire
|
| GFX Series |
AMD Radeon, RX 9070
|
| Vram Memory |
16 GB
|
Specifications

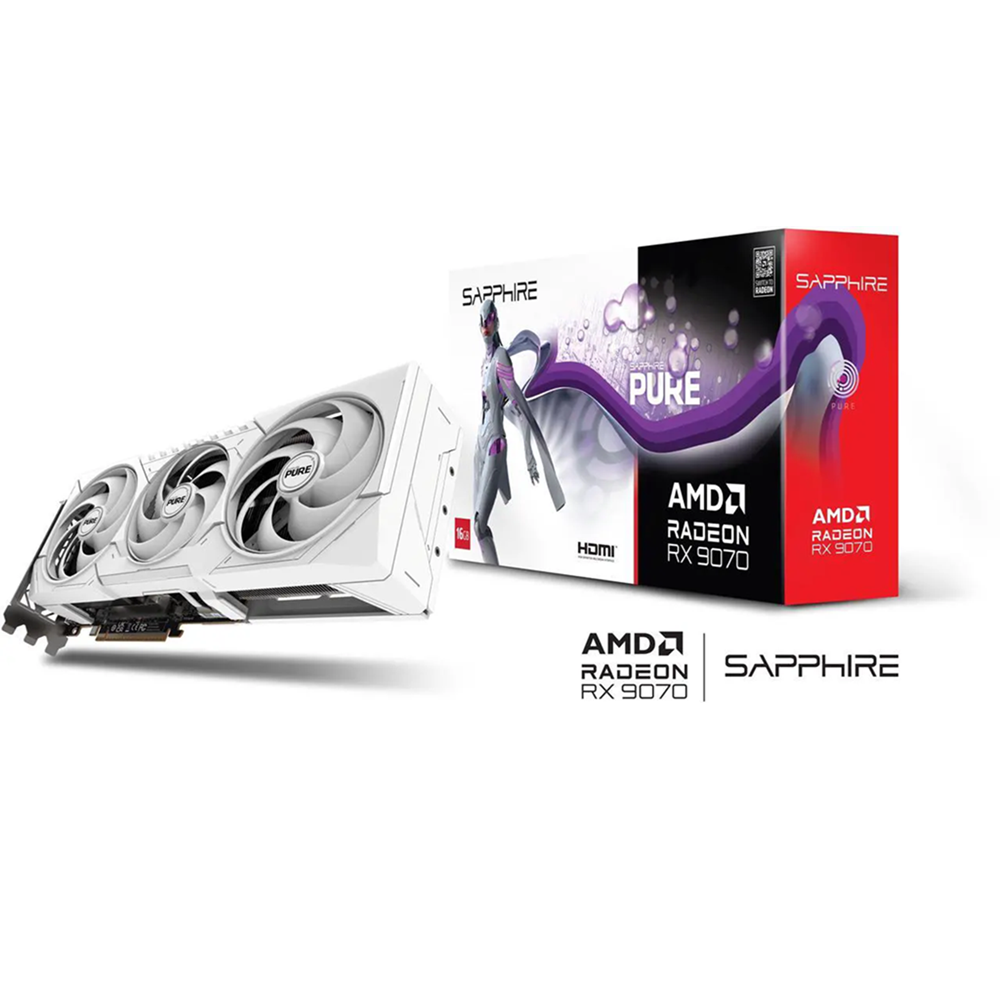

- #SKU#: 11349-02-20G SAPPHIRE PURE AMD Radeon™ RX 9070 OC GPU with 16GB memory, AMD RDNA™ 4 architecture, DisplayPort™ 2.1a
GPU
AMD Radeon™ RX 9070 Graphics Card
AMD RDNA™ 4 Architecture
Engine Clock
- Boost Clock: Up to 2700 MHz
- Game Clock: Up to 2210MHz
Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainabilty will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads.
Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.
Stream Processors
3584
Compute Units
56 CUs (3rd Gen RT + 2nd Gen AI Accelerators)
Infinity Cache
64MB
Ray Accelerators
56
AI Accelerator
112
Memory Size/Bus
16GB/256 bit GDDR6
Memory Clock
20 Gbps Effective
Displays
Maximum 4 Displays
Resolution
- HDMI®: 7680×4320
- DisplayPort™ 2.1a: 7680×4320
Interface
PCI-Express 5.0 x16
Output
- 2x HDMI®
- 2x DisplayPort™ 2.1a
BIOS Support
Game Index
4K
Sapphire Features
- Honeywell PTM7950 Thermal Interface Material (TIM)
- AeroCurve Fan Blade
- Free Flow
- FrameDefense
- Integrated Cooling Module
- Tri-X Cooling Technology
- High TG Copper PCB
- Optimized Composite Heatpipes
- Metal Backplate
- ARGB SAPPHIRE Logo
- Two-Ball Bearing Fans
- 12-Phase Digital Power Design
- Fuse Protection
- Intelligent Fan Control
- Precision Fan Control
- TriXX Supported
- Performance vs. Efficiency Quicksets
- Glow!
- TriXX Boost
- External RGB LED MB Synchronization
Accessories Bundled
- L-Shape Support Bracket
- 3pin 5V ARGB Cable
AMD Features
- AMD RDNA™ 4 Architecture
- 56 Compute Units (3rd Gen RT + 2nd Gen AI Accelerators)
- AMD HYPR-RX with AFMF 2
- AMD FidelityFX™ Super Resolution 4 with AI Upscaling
- DisplayPort™ 2.1a
- AMD Radiance Display™ Engine
- AMD Fluid Motion Frames 2 technology
- AMD Radeon™ Anti-Lag 2 technology
- AV1 Encode/Decode
- AMD FidelityFX™ technologies
- Microsoft® DirectX® 12 Ultimate
- AMD Noise Suppression
- AMD Freesync™ technology
- 16 GB of GDDR6 on 256-bit Memory Bus
- AMD smart technologies
- AMD Software: Adrenalin Edition™ application
Cooler Type
- Tri-X Cooling
- AeroCurve Fan Blade
- Free Flow
- Integrated Cooling Module
- High TG Copper PCB
- Optimized Composite Heatpipes
- Two-Ball Bearing
Form Factor
3 slot, ATX
Dimension: 320(L)X 120.25(W)X 61.6 (H)mm
Power Consumption
245W Typical Board Power
OS
Linux®, Windows® 10, and Windows 11. 64-bit operating system required
System Requirement
- Minimum 650 Watt Power Supply
- 2 x 8-pin Power Connector.
- PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard.
- Minimum 8GB of system memory. 16GB recommended.
