TP-Link Archer NE200 5G Outdoor CPE Router, 2.5GE Port
TP-Link Archer NE200 5G Outdoor CPE Router, 2.5GE Port - Image 2
TP-Link Archer NE200 5G Outdoor CPE Router, 2.5GE Port - Image 3
TP-Link Archer NE200 5G Outdoor CPE Router, 2.5GE Port - Image 4
TP-Link Archer NE200 5G Outdoor CPE Router, 2.5GE Port - Image 5
, ,

TP-Link Archer NE200 5G Outdoor CPE Router, 2.5GE Port

SKU: PCK17719 Categories: , ,
TP-Link
Availability:

In stock

TP-Link

Pole/Wall/Window Mounting
IP66 Waterproof & Dustproof
2.5GE Port for Internet Access
Download speeds up to 4.67 Gbps

KD 68.000

In stock

Buy Now

TP-Link

  • Unrivaled 5G Speed: Experience blazing-fast download speeds up to 4.67 Gbps with 5G technology.*
  • LTE-Advanced Cat19: Offers up to 1.6 Gbps mobile download speeds for unparalleled performance.
  • Durable outdoor enclosure: Robust outdoor connectivity and reliability with IP66 weatherproof protection** and ±6kV lightning protection & ±15kV ESD protection§
  • 2.5GE Port for Internet access: The 2.5GE port provides outstanding speed, ensuring an enhanced networking experience.***
  • PoE Power Supply: Supports passive PoE and 802.3af/802.3at PoE, enabling easy deployment.
  • Multiple mounting installation: Install easily anywhere with pole, wall, or window mounting for flexible, convenient use.
  • Plug and Play: Plug in a SIM card to get instant internet access anywhere.

Extend High-Speed Internet Access Indoors

Compared to 5G indoor routers, the NE200-Outdoor can be installed outdoors to optimize signal reception. Connecting via wire to an indoor router ensures that your home or office enjoys a powerful and stable 5G network experience.

Unrivaled 5G Speed

Insert a SIM card to enjoy 5G download speeds up to 4.67 Gbps and CAT19 speeds up to 1.6 Gbps*. Experience rock-solid, high-speed connectivity for HD streaming, online gaming, and large file transfers—without lag or delays.

Robust Protection for Reliable Outdoor Performance

The NE200-Outdoor is built to withstand harsh conditions with IP66 weatherproof rating, operates in a wide temperature range of -30℃~+60℃, and protection against up to 6kV lightning and 15kV ESD (Electrostatic Discharge), ensuring long-term, fault-free operation, and providing a dependable network connection.

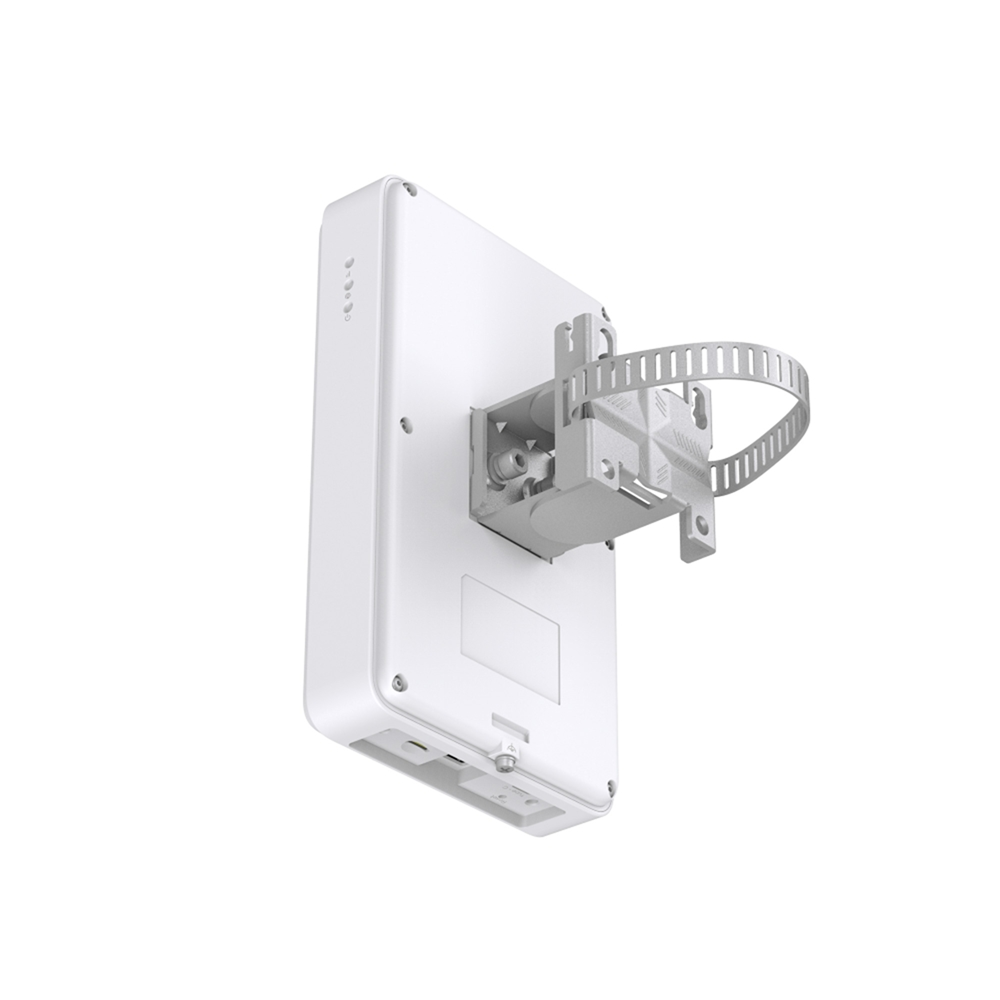

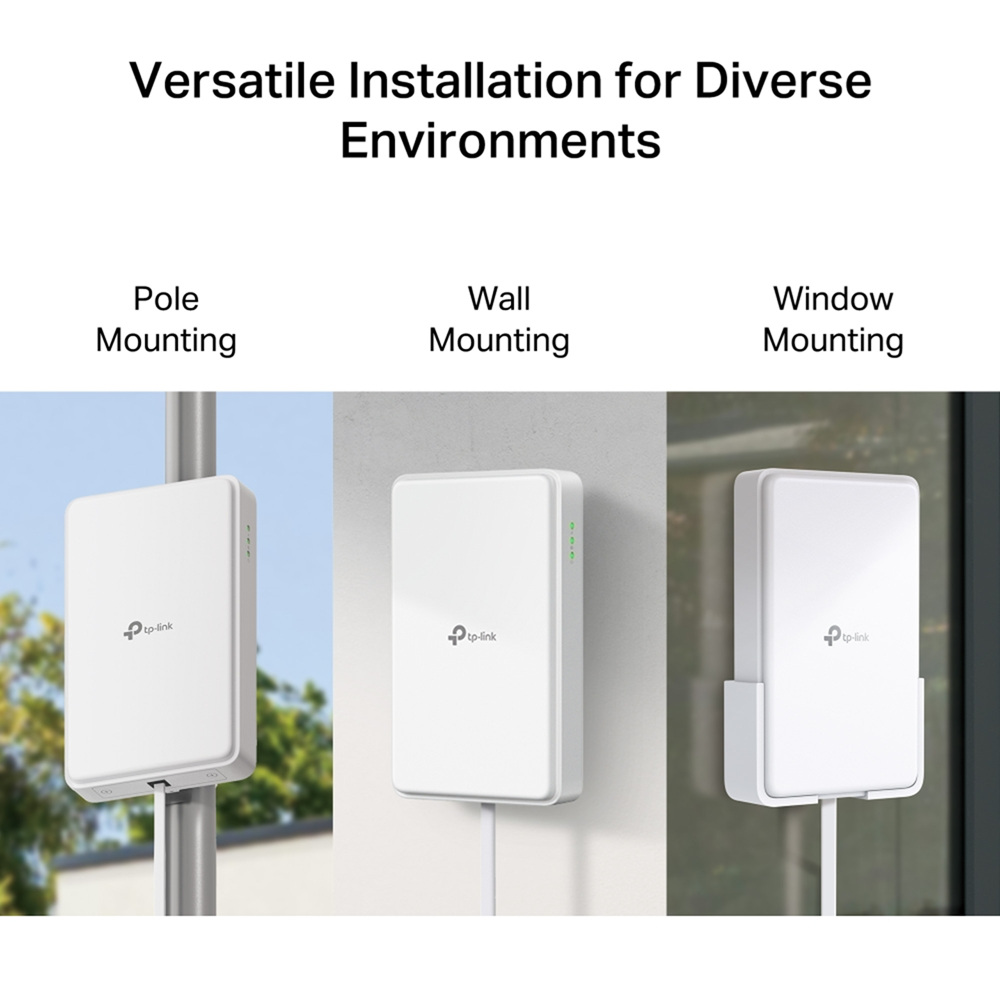

Versatile Installation for Diverse Environments

The NE200-Outdoor offers versatile installation options—mount on a pole or a wall, or adhesive to a window. This flexibility allows for installation in a wide range of environments, from urban areas to rural settings. Easily find the best location for optimal signal, ensuring reliable and fast 5G connectivity.

2.5GE Port with PoE: Simplified Outdoor Connectivity

Featuring 2.5 Gbps port speeds, the NE200-Outdoor supports passive PoE and 802.3af/802.3at PoE, enabling ultra-fast data transfer and power over a single cable.*** This simplifies outdoor setup and ensures reliable, high-speed indoor connectivity.

SKU: PCK17719 Categories: , ,
Brand Name

TP-Link
Features

2.5G, 5G, Outdoor, PoE, Router
HARDWARE FEATURES
Interface 1 × 10/100/1000 Mbps LAN/WAN Port
2 × 10/100/1000 Mbps LAN Ports
1 × Nano SIM Card Slot
2 × 5G/4G External Antenna Ports
Button WPS Button, Reset Button, Power On/Off Button, Wi-Fi On/Off Button
External Power Supply Power Adapter: Input Power 100-240v~50/60 Hz 0.6A
Output parameter 12VDC 2A
Dimensions ( W x D x H ) 3.9 × 3.9 × 7.5 in ( 99 × 99 × 190 mm)
Antenna 8 × 5G/LTE Internal Antennas
2 × Wi-Fi Internal Antennas
WIRELESS FEATURES
Wireless Standards IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/b/g 2.4 GHz
Frequency 2.4 GHz and 5 GHz
Signal Rate 574 Mbps at 2.4 GHz, 1201 Mbps at 5 GHz
Reception Sensitivity 5GHz：
11a 54M：-80 dBm
11ax HE20：-68 dBm
11ax HE40：-65 dBm
11ax HE80：-62 dBm
11ac VHT20：-76 dBm
11ac VHT40：-72 dBm
11ac VHT80：-68 dBm
11n HT20：-79 dBm
11n HT40：-75 dBm
2.4GHz
11g 54M：-78 dBm
11ax HE20：-65 dBm
11ax HE40：-62 dBm
11ac VHT20：-73 dBm
11ac VHT40：-68 dBm
11n HT20：-75 dBm
11n HT40：-72 dBm
Transmit Power <23dBm (5.15GHz~5.35GHz)
<30dBm (5.47GHz~5.71GHz)
<20dBm (2.4GHz)
Wireless Functions Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless
Statistics
WAN Failover Yes
Wireless Security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions
Network Type 5G: N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N77/N78 (2100/1800/850/2600/900/800/700/2600/2300/2500/3700/3500 MHz)
FDD-LTE: B1/B3/B5/B7/B8/B20/B28/B32 (2100/1800/850/2600/900/800/700/1500 MHz)
TDD-LTE: B38/B40/B41/B42/B43 (2600/2300/2500/3500/3700 MHz)
DC-HSDPA/HSPA+/HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz)
SOFTWARE FEATURES
Quality of Service Prioritizes network traffic by device or application
Security DoS, IPv4 SPI Firewall, IPv6 Firewal, IP and MAC Address Binding, Access Control
WAN Type Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)
Management TP-Link Cloud, Local Management, Remote Management
DHCP Server, DHCP Client List, Address Reservation
Port Forwarding ALG, Virtual Server, Port Triggering, UPnP, DMZ
Dynamic DNS TP-Link, DynDns, NO-IP
VPN PPTP VPN, IPSec VPN , OpenVPN
Access Control Parental Control, Local Management Control
Firewall Security DoS, SPI Firewall, IP Address Filter/Domain Filter,
IP and MAC Address Binding
Protocols IPv4, IPv6
Guest Network 2.4 GHz Guest Network x 1
5 GHz Guest Network x 1
OTHERS
Certification CE, RoHS
Package Contents 5G AX1800 Wireless Dual-Band Gigabit Router Archer NX200
1.5m Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
System Requirements Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS,
NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other
Java-enabled browser
Nano SIM Card
Environment Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
